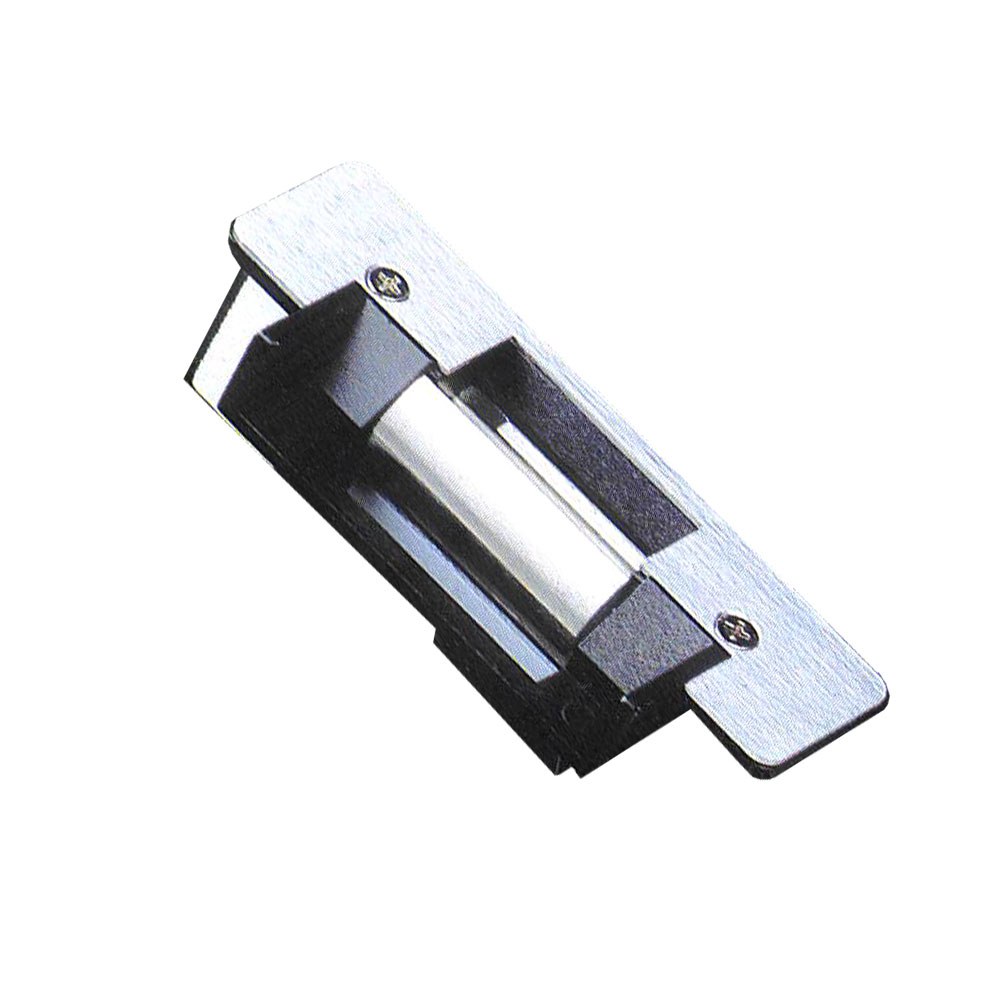

Fail-Safe Electric Door Lock

When a “fail-safe” electric door lock loses power its default position is to unlock (or unsecure) it. Application of power is required to lock (secure) the door. Always consult fire codes and second stage manual lock requirements. High strength solenoid 300kg holding force Anodized aluminum housing Used with any proximity card reader relay out Popular option for businesses Deployed for aluminum frame, glass doors Suitable for wood, metal or plastic frames 2 screw terminals for wire connections 300kg holding force High strength solenoid Power: 12VDC, 400mA Aluminum construction with die-cast chassis Temp: -10~+60℃ Dimensions: 128mm x 32mm x 38mm (5.04″ x 1.26″ x 1.50″)
